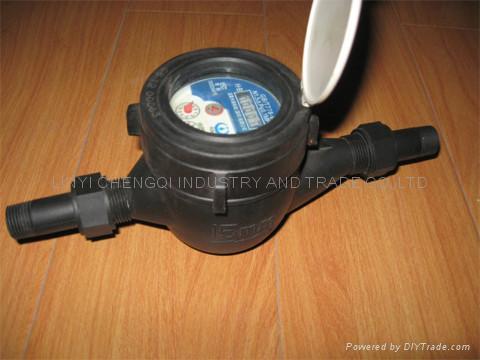

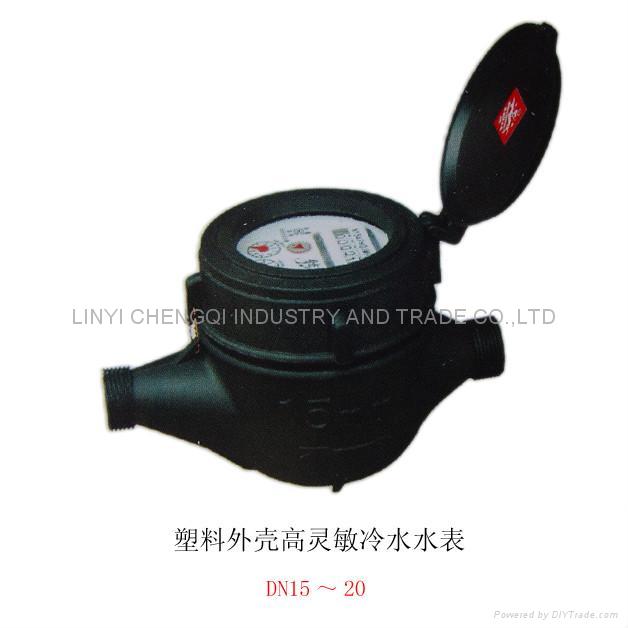

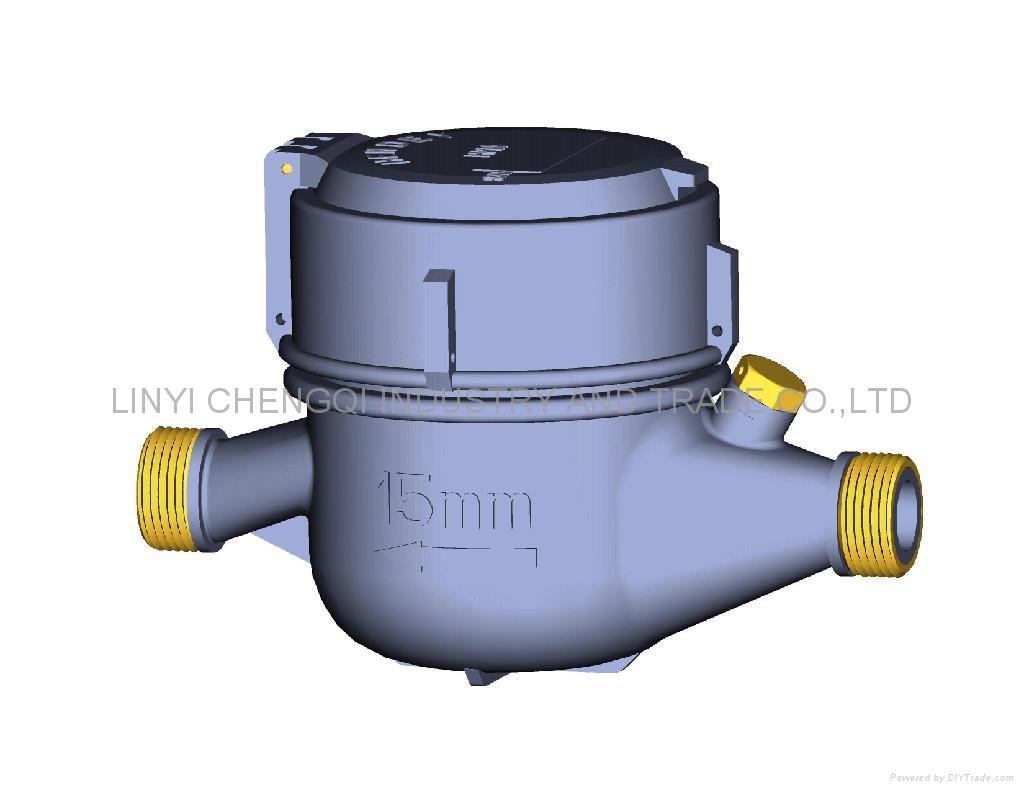

Nylon water meter

Model No.︰LY-HY10WH095

Brand Name︰OEM

Country of Origin︰China

Unit Price︰US $ 3.2 / pc

Minimum Order︰1000 pc

Multi-jet, vane wheel, dry-dial water meter WITH external adjusting valve.

Application:

--Measuring the total volume of cold portable water passing through the pipeline.

Feature:

--Multi-jet, dry-dial, easy for maintenance;

--Magnetic drive reliable characteristic, long working life;

--Vacuum sealed register ensures the dial keep free from fog and frost, Keep the reading clear in a long term service;

-- Technical data conform to international standard ISO4064 Class B

CHARACTERS:
1. 2. 3.	Counter vacuum sealed, frost proven, keeping clear reading for long. Magnetic transmission free from disturbance. Fine plastic meter body and cover. Outside adjustable.

Working condition:

Water temperature: 0.1℃～40℃ for cold water meter .

0.1℃～90℃ for hot water meter.

Water pressure : ≤1.0Mpa

Maximum permissible error:

(1) in the lower zone from q_min inclusive up to but excluding q_t is ±5%.

(2) in the upper zone from q_t inclusive up to and including q_s is ±2%;
